TV Mounting Hub Yorba Linda: In-Wall TV Wire Concealment in Yorba Linda
TV Mounting Hub Yorba Linda covers hiding TV wires inside the walls of Yorba Linda homes — rated parts that carry power and HDMI behind the drywall over the long distances of a large family room — and explains how that differs from adding an outlet or a circuit.
Bookings aren't open yet. Leave your name and number; your message is recorded, and you'll get one message when a local installer is available.
Illustration
What belongs inside a wall
Only rated parts go inside a wall, and a TV's own power cord is not one of them.
- Never inside: a standard TV power cord or an extension cord.
- Yes, inside: an in-wall rated power relocation kit, with a recessed inlet behind the TV and an outlet near the console.
- Yes, inside: CL3-rated HDMI and other low-voltage cable.
- By an electrician: a brand-new outlet or circuit, which is a separate job from mounting.
How a rated kit goes in
The installer cuts one opening behind the TV and one near the console, probes the bay for wires, pipes and fire blocking, then guides the cable through with a pull string and a flexible rod. Fire blocking is worked around, never cut through, and both plates are fixed with holes only as big as the parts need.

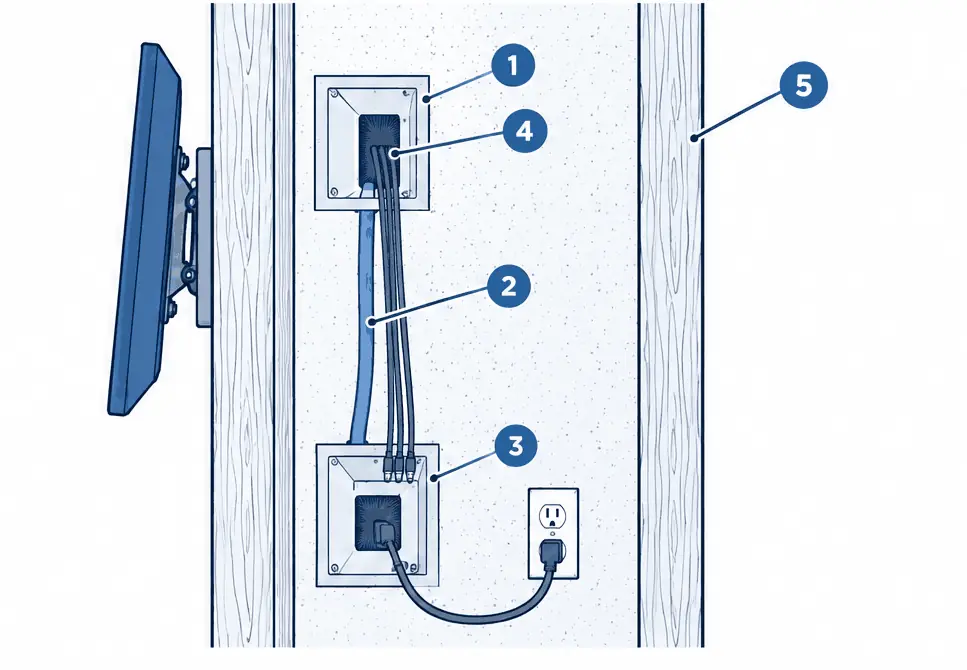

What the numbers show
- Upper recessed box A recessed box behind the TV holds the receptacle the TV plugs into.
- In-wall rated cable Rated cable runs between the boxes inside the stud bay.
- Lower inlet box A recessed box near the floor takes power from a short cord to an existing outlet.
- Signal pass-through A brush-covered opening lets HDMI cables pass through the same bay.
- Stud bay The bay between two studs is the protected route for the cable.
Long distances and patched holes
Family rooms here are large, and the cabinet can sit a long way from the screen. A run that must cross a window or a door frame gets a paintable raceway for that short stretch. Small holes are patched and painted from the owner's can.
In-Wall Wire Concealment — common questions
How much does hiding the wires cost in Yorba Linda?
About $95–$165 on top of the base range in 2026, so roughly $204–$314 for a 32–49 inch TV on drywall.
Is it legal to run a power cord inside a wall?
No standard power cord belongs inside a wall; only in-wall rated kits do, and a new outlet is electrical work for an electrician.
Availability & price range
In-Wall Wire Concealment: check availability and price range
Bookings aren't open yet — answer a few quick questions about the TV and the wall and get a typical Yorba Linda price range right here. Typical Yorba Linda prices for one TV, labor only unless an option says otherwise. This is a market estimate, not a quote.
